Memristor synapse

Emulating how the brain remembers, using a memristor as an artificial synapse.

Course
Soft Computing
When
May 2022
Team
Loice Njuguna
Supervisor
Dr. Pankaj Dahiya

The problem

Brains store memories by strengthening synapses that fire together. A memristor remembers the last current through it, which makes it a natural candidate for an artificial synapse.

How it works

  1. 1Studied how memristors map onto spiking, multilayer, convolutional and recurrent neural networks
  2. 2Built a threshold type memristor emulator circuit
  3. 3Simulated it in PSpice with a 2.5 V, 5 Hz sine input

Result

The simulation showed the memristor behaviour that lets it act as a synapse in a neural network.

From the report

Memristor emulator simulation results

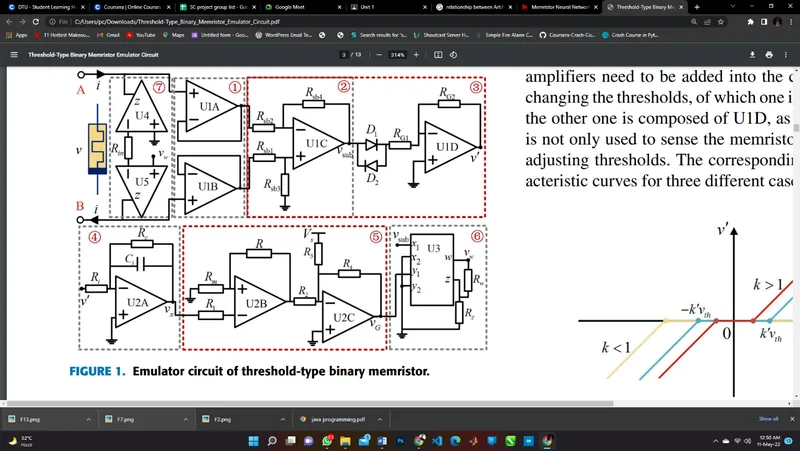

Threshold memristor emulator circuit

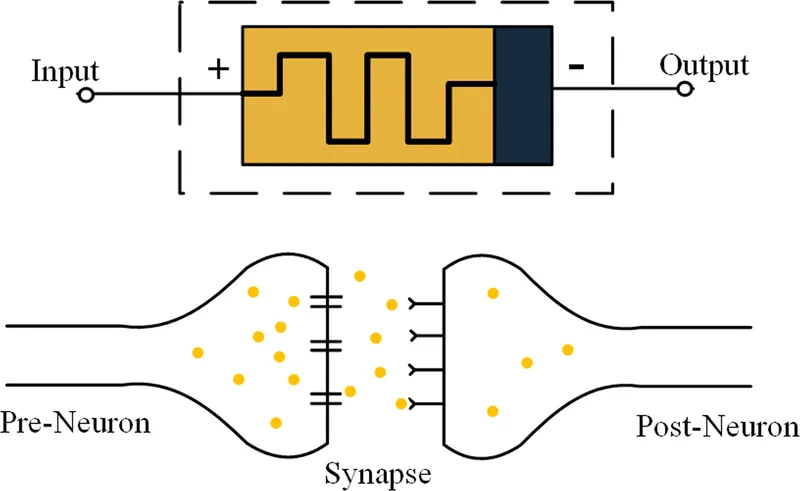

How a synapse passes a signal
