Automatic door

A door that opens by itself when someone walks up to it, driven by an Arduino.

Course
Embedded Systems
When
Jan to May 2022
Team
Loice Njuguna
Supervisor
Mr. Ajai Kumar Gautam

The problem

Doors that need a hand to open are a barrier for people carrying things, for accessibility, and for hygiene.

How it works

  1. 1A PIR sensor detects movement in front of the door
  2. 2The Arduino reads the sensor and drives a motor driver module
  3. 3The motor driver turns the DC motor to open the door, then closes it again
  4. 4The whole circuit was simulated in Proteus before it was built

Result

A working model that opens on movement, matching the Proteus simulation.

From the report

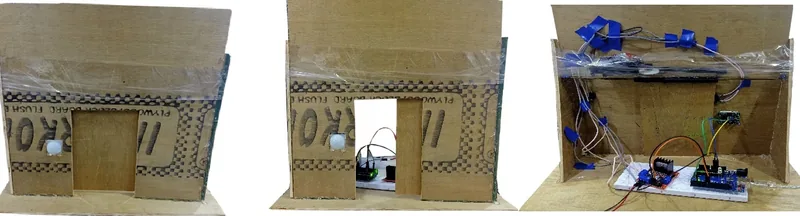

The prototype from three sides

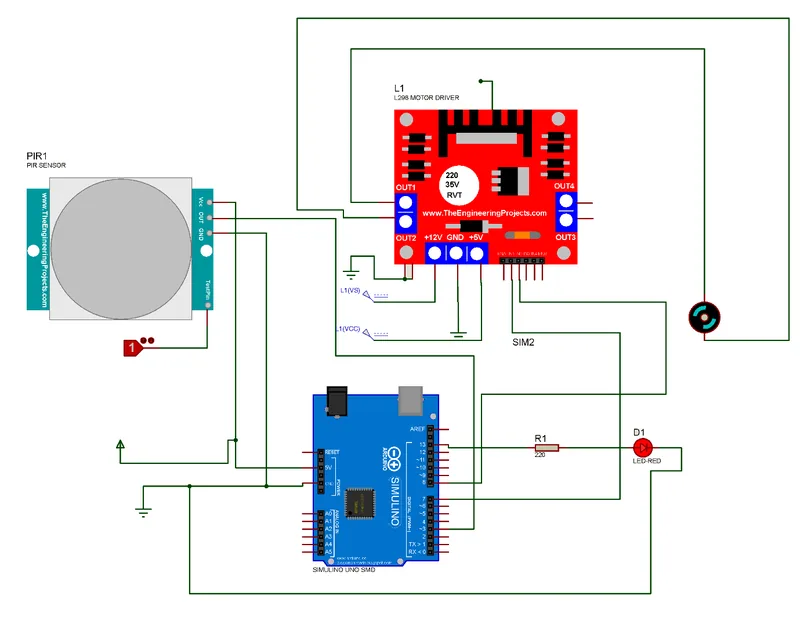

The circuit: PIR sensor, Arduino and motor driver
